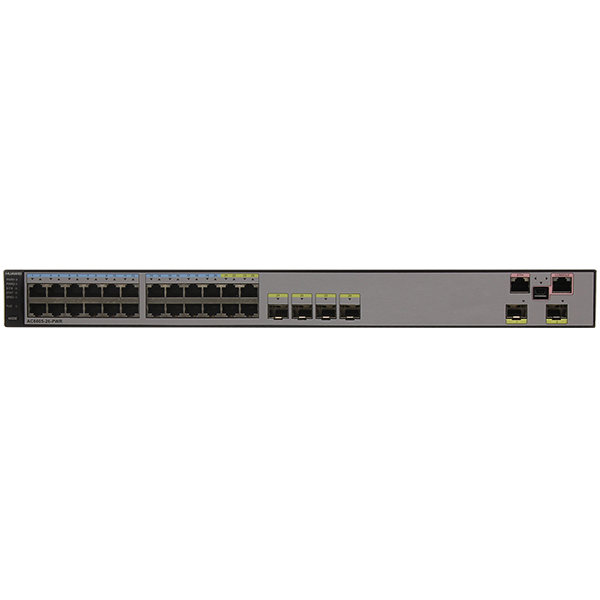

AC6605-26-PWR（简称AC6605）是华为技术有限公司推出的无线接入控制器AC（Access Controller），提供大容量、高性能、高可靠性、易安装、易维护的无线数据控制业务，具有组网灵活、绿色节能等优势。
项目 |
描述 |
|
|---|---|---|
外形尺寸（宽×深×高） |
442mm×420mm×43.6mm |
|
最大功耗 |
85W |
|
重量 |
空框：5.48kg 满配置150W电源模块：7.16kg 满配置500W电源模块：7.48kg |
|
工作温度与海拔 |
-60m～+1800m：-5℃～+50℃ 1800m～5000m：海拔每升高300m，最高工作温度降低1℃ |
|
配套电源模块工作海拔 |
|
|
相对湿度 |
5%RH～95%RH，非凝露 |
|
交流输入电压 |
额定电压 |
100V AC～240V AC，50/60Hz |
最大电压范围 |
90V AC～264V AC，47～63Hz |
|
直流输入电压 |
额定电压 |
-48V DC～-60V DC |
最大电压范围 |
-36V DC～-72V DC |
|
| 参数 | 参数值 |
|---|---|
| 可管理AP的数量 | |
| 用户接入能力 |
|
| MAC地址表数量 | 16K |
| VLAN数量 | 4K |
| 路由表项数量 | 10K |
| ARP表项数量 |
|
| 组播表项数量 | 4K |
| DHCP IP地址池数量 | 最大128地址池，每池最大可分配地址数16K |
| 本地用户 | 1000 |
| 访问控制列表数量 | 8K |
| ESSID数量 |
|
| 用户组管理 |
|
标准名 |
说明 |
|---|---|
| MIL-HDBK-217F | Electronic Product Reliability Estimation Manual |
| ETS EN 300 019 1-1 V.2.1.4. Class 1.2 | Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-1: Classification of environmental conditions; Storage |
| ETS EN 300 019-1-2 V.2.1.4. Class 2.2 | Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-2: Classification of environmental conditions; Transportation |
| ETSI EN 300 019-1-3 | Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-3: Classification of environmental conditions; Stationary use at weatherprotected locations |
| ETSI EN 300 019-2-1 | Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-1: Specification of environmental tests; Storage |
| ETSI EN 300 019-2-2 | Equipment Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-2: Specification of environmental tests; Transportation |
| ETSI EN 300 019-2-3 | Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-3: Specification of environmental tests; Stationary use at weatherprotected locations 6 |
| IEC 60721-3-3 | Classification of environmental conditions Part3: Classification of groups of environmental parameters and their severities- Section 3: Stationary use at weatherprotected locations |
标准名 |
说明 |
|---|---|
| ETSI EN 300 386 V1.4.1(2008-04) | Electro Magnetic Compatibility test specification |
| IEC61000-4-11,2004 | Electromagnetic compatibility(EMC)-Part 4-11:Testing and measurement techniques-Voltage dips, short interruptions and voltage variations immunity tests |
| IEC 61000-4-4 | Electromagnetic compatibility(EMC)-Part 4-4:Testing and measurement techniques-Electrical fast transient/burst immunity test |
| IEC61000-4-2，2009 | Electromagnetic compatibility(EMC) Section 4.2 Electrostatic discharge immunity test- Basic EMC Publication |
| IEC61000-4-3，2006 | Electromagnetic compatibility Part4-3:Testing and measurement techniques-Radiated, radio-frequency, electromagnetic field immunity test |
| IEC61000-4-5，2005 | Electromagnetic compatibility(EMC)- Part4-5:Testing and measurement techniques-Surge immunity test |
| IEC61000-4-6，2006 | Electromagnetic compatibility(EMC) Part4:Testing and measurement techniques Section 6:immunity to conducted disturbance,induced by radio-frequency fields |
| IEC61000-4-29，2000 | Electromagnetic compatibility(EMC)-Part4-29: Testing and measurement techniques-Voltage dips,shot interruptions and voltage variations on d.c. input power port immunity tests |
| IEC 61000-3-2 | Electromagnetic compatibility(EMC)-Part3-2: Limits-Limits for harmonic current emissions(equipment input current ≤16A per phase) |
| IEC 61000-3-3 | Electromagnetic compatibility(EMC)-Part3-3: Limits-Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤16A per phase and not subject to conditional connection |
| ETSI EN 300 132-2 | Environmental Engineering (EE);Power supply interface at the input to telecommunications equipment; Part 2: Operated by direct current (dc) |
| AS/NZS CISPR 22:2006 | Information technology Equipment - Radio disturbance characteristics - Limits and methods of measurement |
| EN55022/EN55024-ITE | Information technology Equipment - Radio disturbance characteristics - Limits and methods of measurement Information technology Equipment - Immunity characteristics - Limits and methods of measurement |
| ITU-T K.20 | Recommendation K.20 (02/00) - Resistibility of telecommunication equipment installed in a telecommunications centre to overvoltages and overcurrents |
| ITU-T K.21 | SERIES K:PROTECTION AGAINST INTERFERENCE Resistibility of telecommunication equipment installed in a customer premises to overvoltages and overcurrents |
| ITU-T K.45 | Resistibility of telecommunication equipment installed in the access and trunk networks to overvoltages and overcurrents |
| ITU-T K.44 | SERIES K:PROTECTION AGAINST INTERFERENCE Resistibility test for telecommunication equipment exposed to overvoltages and overcurrents - Basic recommendation |
| ICES-003 | Digital Apparatus |
| GB9254 | 信息技术设备的无线电骚扰限值和测量方法 |
标准名 |
说明 |
|---|---|
| IEC60950-1: 2005 | Safety of information technology equipment including Electrical Business Equipment |
| IEC 529 | Classification of degrees of protection provided by enclosures |
| UL60950-1: 2007 | Safety of information technology equipment including Electrical Business Equipment |
| CSA C22.2 NO.950 UL | Standard for Safety Communications Cables |
| EN60950 | Safety of Information technology equipment |
| EN41003 | Safety of Information technology equipment |
| AS 3260 | Approval and Test Specification - Safety of information technology Equipment including electronic business Equipment |
| ETS 300 119 | European telecommunication standard for equipment practice |
| GB 4943 | 信息技术设备的安全 |
标准名 |
说明 |
|---|---|
| Regulation 1907/2006/EC | Registration, Evaluation, Authorization, and Restriction of Chemicals |
标准名 |
说明 |
|---|---|
| Directive 2002/96/EC & 2012/19/EU | Waste Electrical and Electronic Equipment Directive |
| 特性 | 说明 | |
|---|---|---|
| 以太网特性 | Ethernet |
|
| VLAN |
|
|
| MAC |
|
|
| ARP |
|
|
| LLDP |
|
|
| 以太网环路保护 | MSTP |
|
| IPv4转发 | IPv4特性 |
|
| 单播路由特性 |
|
|
| 组播路由特性 |
|
|
| IPv6转发 | IPv6特性 |
|
| 单播路由特性 |
|
|
| 组播路由特性 |
|
|
| 设备可靠性 | BFD |
|
| 二层组播特性 | 二层组播特性 |
|
| 以太网OAM | EFM OAM |
|
| QoS特性 | 流分类 |
|
| 流动作 |
|
|
| 队列调度 |
|
|
| 拥塞避免 |
|
|
| 应用控制 |
|
|
| 配置与维护 | 终端服务 |
|
| 文件系统 |
|
|
| 调试和维护 |
|
|
| 版本升级 |
|
|
| 安全和管理 | 系统安全 |
|
| 网络管理 |
|
|
| 特性 | 说明 |
|---|---|
| AP与AC间组网方式 |
|
| 转发模式 |
|
| 无线组网模式 | 支持WDS网桥：
支持无线Mesh网络：
|
| 支持AC发现机制 |
|
| CAPWAP隧道 |
|
| 支持主备AC |
|
| 特性 | 说明 |
|---|---|
| AP设备的接入控制 |
|
| AP域管理 |
|
| AP配置模板管理 |
|
| AP设备类型特性管理 |
|
| 网络拓扑管理 | 支持AP LLDP拓扑感知 |
| AP运行模式管理 | 支持AP运行模式切换：AC上支持将AP的运行模式切换为FAT模式或云模式。 |
| 特性 | 说明 |
|---|---|
| 射频模板管理 |
|
| 统一静态配置 | 整网射频参数的集中配置与管理：经过网规部署，在AC上进行集中配置，将射频参数（工作信道、发射功率等）批量下发给各AP |
| 集中动态管理 |
|
| 业务增强 |
|
| 特性 | 说明 |
|---|---|
| 服务集（ESS）管理 |
|
| 基于VAP的业务管理 |
|
| 配置的自动发放管理 |
|
| 组播业务管理 |
|
| 负载均衡 |
|
| BYOD（Bring Your Own Device） |
|
| 定位服务 |
|
| 频谱分析 |
|
| Hotspot2.0 |
|
| 物联网 |
|
| 特性 | 说明 |
|---|---|
| 无线用户地址分配 | 集成DHCP服务器，为无线用户分配地址 |
| WLAN用户管理 |
|
| WLAN用户漫游 |
|
| 用户组管理 |
|
| 特性 | 说明 |
|---|---|
| WLAN安全模板管理 |
|
| 支持多种认证 |
|
| 支持组合认证 |
|
| AAA |
|
| 安全隔离 |
|
| WIDS | 支持非法设备的监测、识别、防范、反制，包括非法AP和STA检测、攻击检测以及动态黑名单 |
| 权限控制 |
|
| 其他安全防护 |
|
| 特性 | 说明 |
|---|---|
| WMM模板管理（WMM-Profile） |
|
| 流量模板管理（Traffic-Profile） |
|
| AC流量控制 |
|
| AP流量控制 |
|
| 报文优先级配置 |
|
| Airtime调度 |
|
